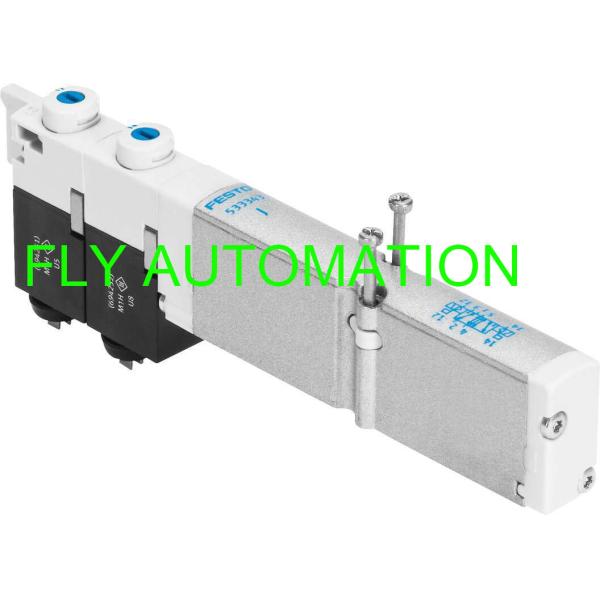

VMPA1-M1H-DS-PI FESTO Pneumatic Solenoid Valves 556841 GTIN4052568202507

  • 1
  • 2

Brand Name : FESTO

Model Number : VMPA1-M1H-DS-PI

Place of Origin : China

MOQ : 1pc

Price : EXW USD60-80

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 200 pcs per month

Delivery Time : 5-7 working days

Packaging Details : Plastic bag, Carton

Order no : 556841

Model : VMPA1-M1H-DS-PI

Brand : FESTO

Symbol : '00992877

Type of actuation : Electric

Valve function : 2x2/2-way, monostable, closed

Contact Now

FESTO Solenoid valve VMPA1-M1H-DS-PI 556841 GTIN4052568202507 Pneumatic Solenoid Valves

About product

1.This simplifies planning, ordering and warehousing.

2.Easy to service thanks to replaceable valves and electronic modules.

3.Manual override either non-detenting, detenting or secured against unauthorised activation (concealed).

4.Secure wall mounting.

Technical Data

Valve function 2x2/2-way, monostable, closed
Type of actuation Electric
Valve size 10 mm
Standard nominal flow rate 230 l/min
Operating voltage 24V DC
Design Piston gate valve
Type of reset Mechanical spring
Approval c UL us - Recognized (OL)
Degree of protection IP65 To IEC 60529
Sealing principle Soft
Mounting position optional
Manual override Detenting Non-detenting
Type of piloting Pilot actuated
Flow direction Reversible
Symbol 00992877
lap Positive overlap
Signal status display yes
Suitability for vacuum yes
Standard nominal flow rate with QS-6 230 l/min
Switching time off 16 ms
Switching time on 14 ms
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC 1 - Low corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Storage temperature -20°C-40°C
Media temperature -5°C-50°C
Ambient temperature -5°C-50°C
Product weight 56 g
Type of mounting With through-hole
Note on materials RoHS-compliant
Material seals NBR
Material housing Die-cast aluminium

Another size as below

Type Order no Price
VMPA1-M1H-D-PI 533350 USD60-80
VMPA14-M1H-D-PI 573727 USD60-80
VMPA2-M1H-D-PI 537960 USD60-80
VMPA1-M1H-DS-PI 556841 USD60-80
VMPA14-M1H-DS-PI 575978 USD60-80
VMPA2-M1H-DS-PI 568657 USD60-80
VMPA1-M1H-I-PI 543605 USD60-80
VMPA14-M1H-I-PI 573728 USD60-80
VMPA2-M1H-I-PI 543703 USD60-80

Design

VMPA1-M1H-DS-PI FESTO Pneumatic Solenoid Valves 556841 GTIN4052568202507

There are so many products, welcome to enquire!
