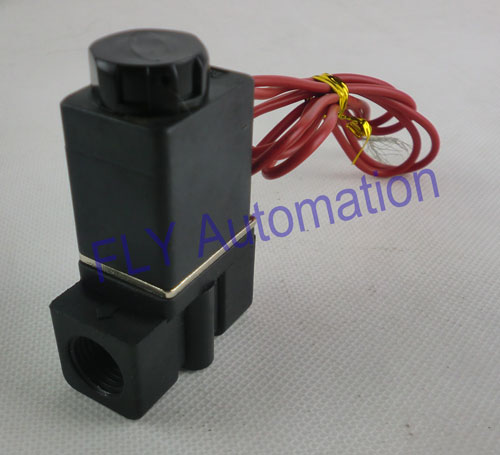

DC 24V 2P025-06 2P-025-08 Plastic Miniature Pneumatic Solenoid Valves

  • 1
  • 2
  • 3

Place of Origin : Ningbo

Brand Name : Airtac or OEM

Certification : ISO 9001,CE

Model Number : 2P025-06 2P025-08

MOQ : 1 piece

Price : Negotiation

Packaging Details : carton,pallet or according to customers' requirement

Delivery Time : 3 working days after receiving the customers' payment

Payment Terms : T/T,Western Union,L/C,Paypal

Supply Ability : 5000 pcs per month

Contact Now

DC 24V 2P025-06 2P-025-08 Plastic Miniature Pneumatic Solenoid Valves

Product features

1.Direct acting and normally closed type 2/2 way solenoid valve canquickly and sensitively change the direction;
2.It has compact structure, small size and light weight. It is easy tobe installed and dismantled;
3.The valve body is made of nylon 66. The heat resistanceclassification of coil is B step. The seals are made of fluororubber which is suitable for different kinds of fluid.
4.The protection class of coil is IP65, and the electrical entry isgrommet.
Specification:
Model 2P025-06 2P025-08
Fluid Air, Water, Oil
Acting Internally piloted acting
Type Normally closed
Orificesize(mm) 2.5
Cv Value 0.23
Port size G1/8 G1/4
Viscositylimit Under 20CST
Operatingpressure 0~0.7MPa(0~100psi)
Proof pressure 1.05MPa(150psi)
Materials ofbody PA 66
Seal material fluororubber
Min.activating time sec 0.05 sec and below
DC 24V 2P025-06 2P-025-08 Plastic Miniature Pneumatic Solenoid Valves
DC 24V 2P025-06 2P-025-08 Plastic Miniature Pneumatic Solenoid Valves
Inner structure:
DC 24V 2P025-06 2P-025-08 Plastic Miniature Pneumatic Solenoid Valves
NO. Item NO. Item NO. Item
1 Body 4 Pilotscrew 7 Coilnut
2 Bottomcover gasket 5 Armature 8 Fixedplate
3 O-ring 6 Coil 9 Spring

Specification of coil:
Valve type Power Frequency (Hz) Voltage range Electrical entry Power consumption (VA/W) Insulation Temp rise(ºC)
2P025 AC 50 ±15% Terminal 7.0VA Class B 35
60
DC - ±10% Grommet 7.0W 45

Dimensions(mm):
DC 24V 2P025-06 2P-025-08 Plastic Miniature Pneumatic Solenoid Valves
